Commercial

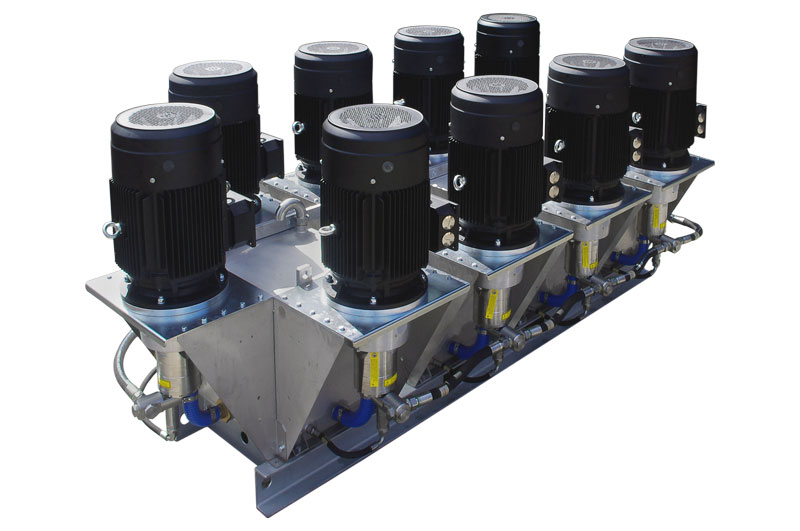

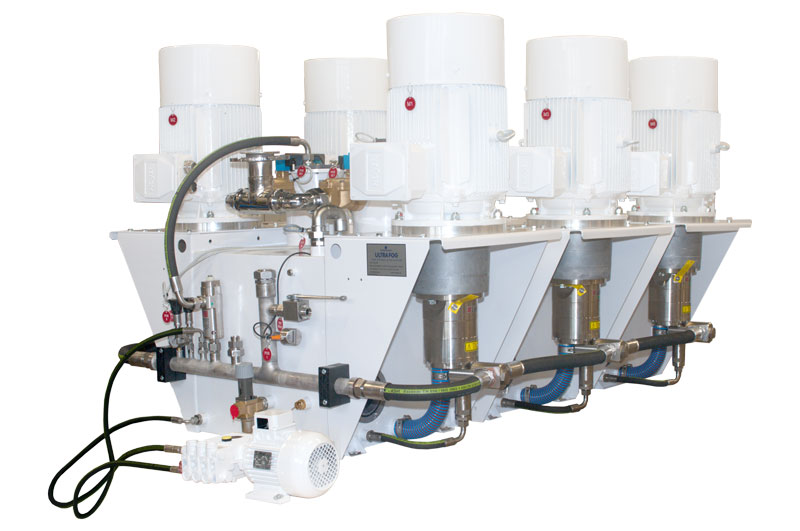

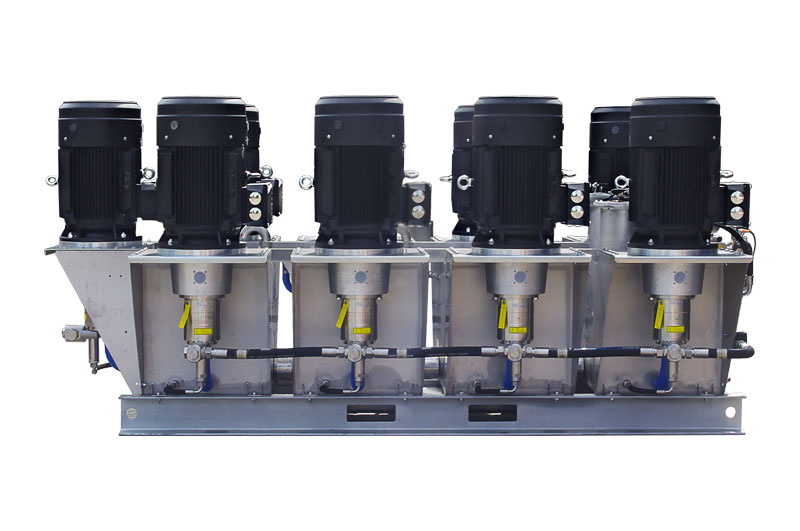

Master Pump Station

OH 1 – OH 2 – OH 3 – OH4 + FM5560 applications.

Technical Data

Outlet pressure: 100 – 140 bar
Flow range: 94 – 150 litres/min/high pressure pump
Power consumption: 22 – 30kw/high pressure pump
Voltage supply: 3 x 400 VAC 50Hz (3 x440 VAC 60 Hz)
Control system with PLC and output/input for section valves, fire alarm system, power supply for feeder pumps etc
External connections for alarm and control cabinets and operating panels through serial or TCP/IP communication

Features

Flexible designed pump station with 1 – 4 internal buffer tanks to hold the high-pressure pumps
Pump unit can be equipped with 2 – 8 high pressure pumps normally with one spare
Electric / Air driven pilot pump
Each tank fitted with two 25μm litres
Temperature safety drain valve and Pressure regulator
Test valve on manifold

Commercial

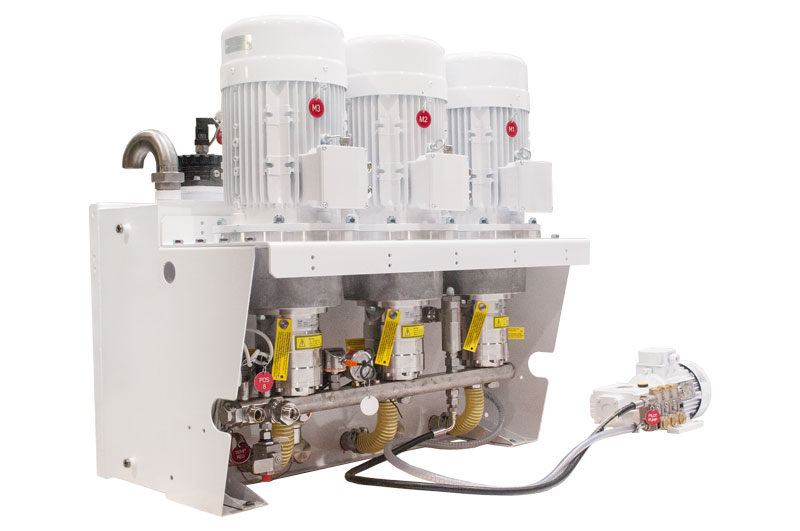

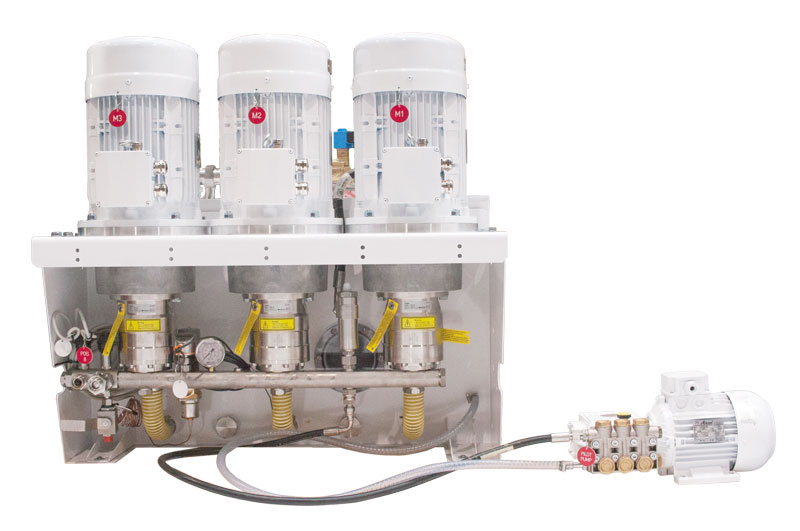

Micro Pump Station

OH 1 – OH 2 – OH 3 – OH4 + FM5560 applications.

Technical Data

Outlet pressure: 100 – 150 bar
Flow at 1500 rpm: 48 litres/min/pump
Flow at 2200 rpm (optional): 75 litres/min/pump (frequency controlled)
Power consumption: 11 to 16 kw/pump/standard 50Hz
Voltage Supply: 3 x 400 VAC 50Hz (3 x 440 VAC 60Hz)
Control system with PLC and output/input for section valves, fire alarm system, feeder pumps etc

Features

Compact designed pump station with 1-3 high pressure pumps with air driven pilot pump
Each tank fitted with two 25μm litres
Temperature safety drain valve and pressure regulator
Test valve on manifold
Extended low rate with optional frequency controlled

Commercial

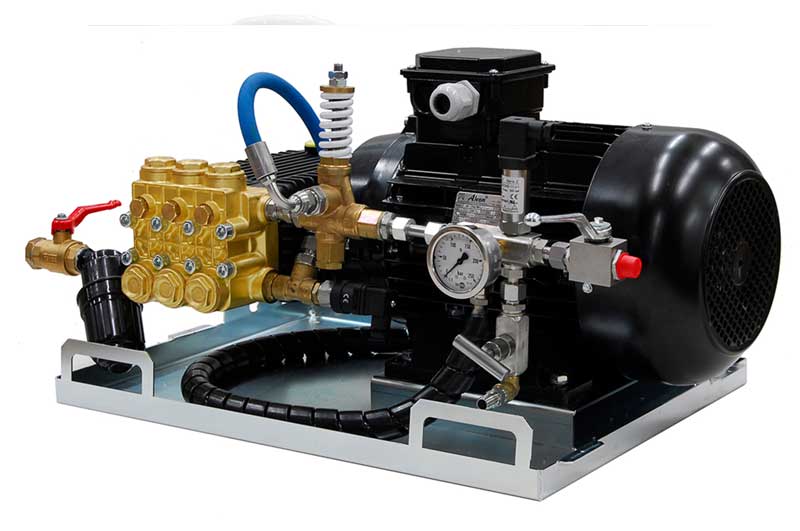

P35 Pump Station

OH 1 – OH 2 – OH 3 – OH4 + FM5560 applications.

Technical Data

Outlet pressure: 100 – 130 bar
Inlet water ¬ow: 56 litres/min at 2 bar
Flow: 35 – 50 litres/min
Power consumption: 11kw
Voltage supply: 3 x 400 VAC 50Hz (3 x 220 VAC 50Hz)

* For inlet water pressure between 0.7 – 2 bar an extra strainer shall be installed with 25 micron litre prior to pump inlet.

Features

Flow: For 100 bar system, up to 50 litres/min.
Electric driven piston high pressure pump with frequency-controlled rpm on motor with adjustable system pressure for small systems.
Easy to install, access, operate and maintain.
Strainer 50 micron, safety valve, pressure gauge, pressure transmitter and test outlet under the same hood.

FREE Quote

Installation Quote

To provide an accurate water mist system quote, please use this quick form and offer all relevant project details.

Once we receive your information, we may contact you to clarify certain details provided, prior to offering a comprehensive and competitive quote.

* Please submit available floorplans directly via email to:

info@iphmistsuppression.co.uk

UK’s No.1

Water Mist System

Whether you have Residential or Commercial property, we have your water mist fire suppression needs covered.

* Submit Floorplans

Send all floorplans to: info@iphmistsuppression.co.uk

Your Name

Contact Number

Email Address

Type of System

Urgency

Company Name

Address + Postcode of Installation

Please provide the required location of protection and any further details that may be relevant for us to know at this time.

Upload Floor Plan File InputNo Files ChosenAccepted file types: jpg, jpeg, jpe, gif, png, bmp, wax, wri, xla, xls, xlt, xlw, odg. Max. file size: 8 MB

Commercial Pump Unit

Custom built with installation in mind:

When seeking a commercial water mist pump that delivers to recognised and approved industry standards, we offer the following custom built and robust range:

Protect your property

As a partner of Ultra Fog we have full access to the complete range of pump sets they manufacture which are approved to cover a wide range of commercial and industrial uses.

Ultra Fog are a world leader in the manufacture of water mist systems, designing pump sets, nozzles and supply the full system including all pipework and fittings.

applications

High Pressure Pump Units

Our range of commercial water mist pump units are suitable for OH 1, OH 2, OH 3, OH 4 + FM 5560 hazards.

As a dedicated installer, IPH Mist Suppression have access to the design department at Ultra Fog and work very closely with them to create the perfect solution so that it meets insurers requirements.

The pump sets and nozzles are all created individually for each and every project as each client’s requirement is unique and bespoke to them.
